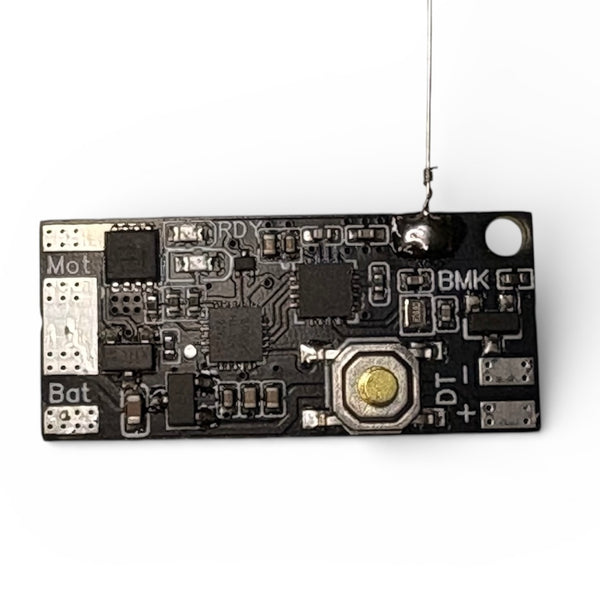

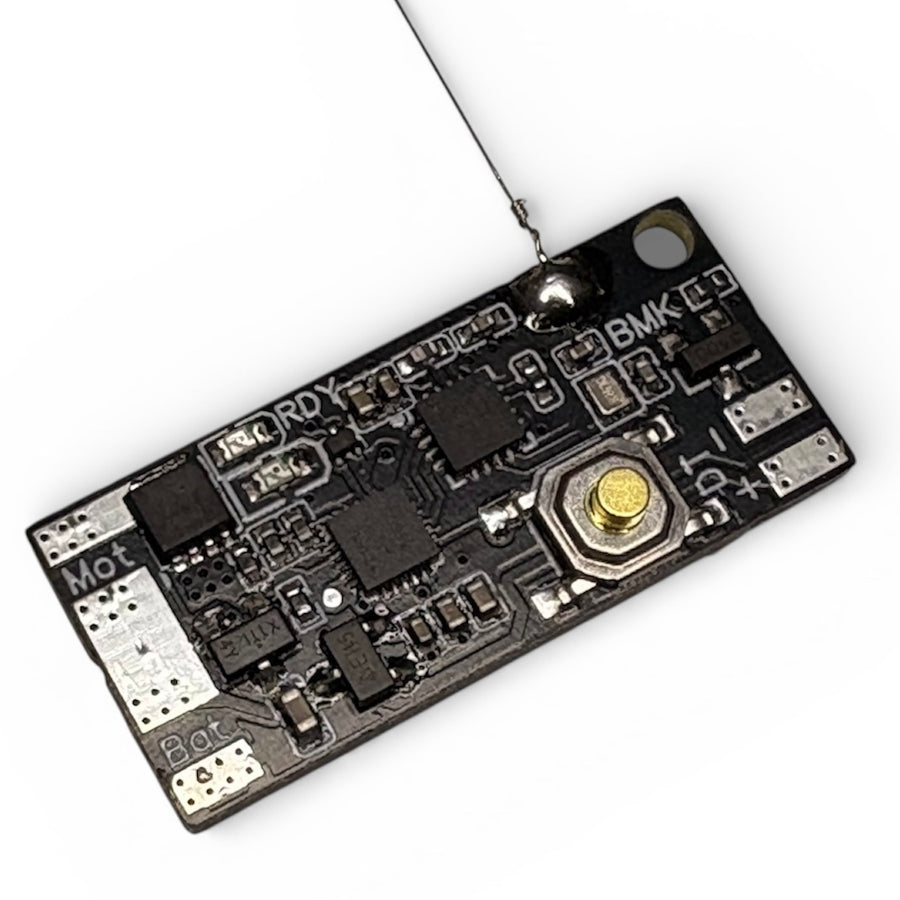

The E20 PRO is an ultra-lightweight (1.2g) RDT and timer solution, featuring both DT and brushed 60A motor outputs with an exceptionally low internal resistance of only 0.006 ohms.

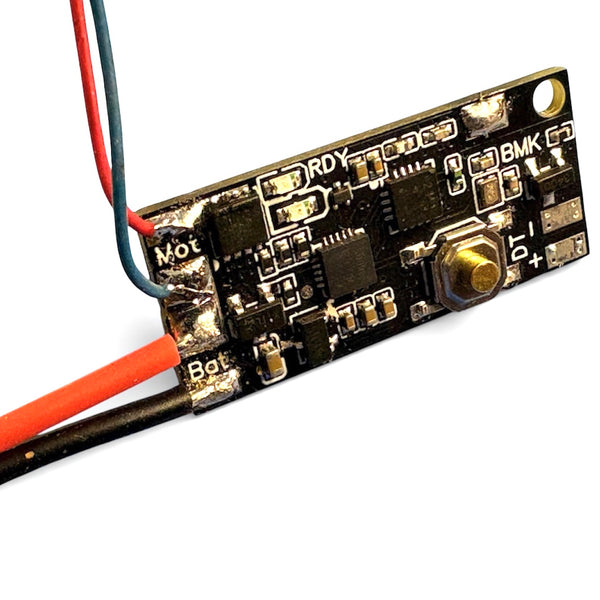

Designed with large direct-soldering pads for battery input and output, it ensures high-current capacity and robust, low-resistance connections for peak performance.
It features an integrated onboard radio receiver, fully compatible with BMK RDT Transmitters. Each transmitter uses a unique security code and can be bound to an unlimited number of BMK receivers.
📄 Documentation
Download User Manual (PDF)
Includes wiring diagrams, setup instructions, and advanced feature details.
Note: The E20 PRO is specifically optimized for coreless motors and 1S LiPo power systems.
🔋 Power Recommendations
To achieve maximum efficiency and high-power output, we strongly recommend using competition-grade 1S batteries (such as BetaFlight TinyWhoop drone batteries) featuring BT2.0 connectors. This setup ensures a high-power, low-resistance connection that outperforms standard connectors.
🔗 Compatible BMK Products
📦 Package Contents
- 1x E20 Pro Timer Circuit Board
⚠️ Important - DT Delay (Abad+):
The DT Delay (Abad+) function is natively supported on these timers. This allows for remote DT delay triggering via the BMK B3 Tx or the BMK SkyLink 434MHz Hand Unit.
📋 Technical Specifications
| Max Motor Duration | 60 seconds (120 blinks @ 0.5s) |
| Motor Timer Steps | 0.5s / 0.2s configurable |
| Max DT Duration | 1200 seconds (20 minutes) |
| DT Timer Steps | 10-second increments |
| Activation | Hold button 2s to arm. Hold 2s again to start motor; release on launch to start timer. |
| Range | Up to 2750m (Open field) | 500–800m with B1 Tx |
| Voltage & Consumption | 3–6V (1S LiPo) | ~10 mA (Receiving) |
| Dimensions & Weight | 28mm × 12.5mm × 5mm | 1.2g |
▶️ Binding Demo Video
🛠️ Frequently Asked Questions

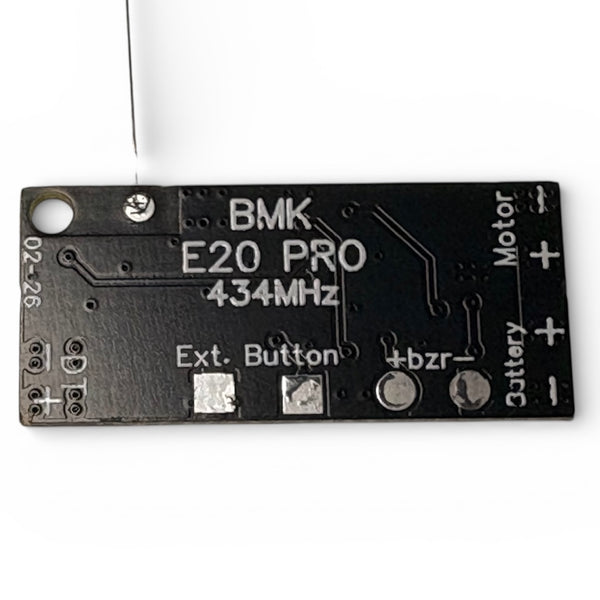

Can I use an external button?
Yes. You can solder a standard momentary pushbutton between the dedicated external button pads on the board.
