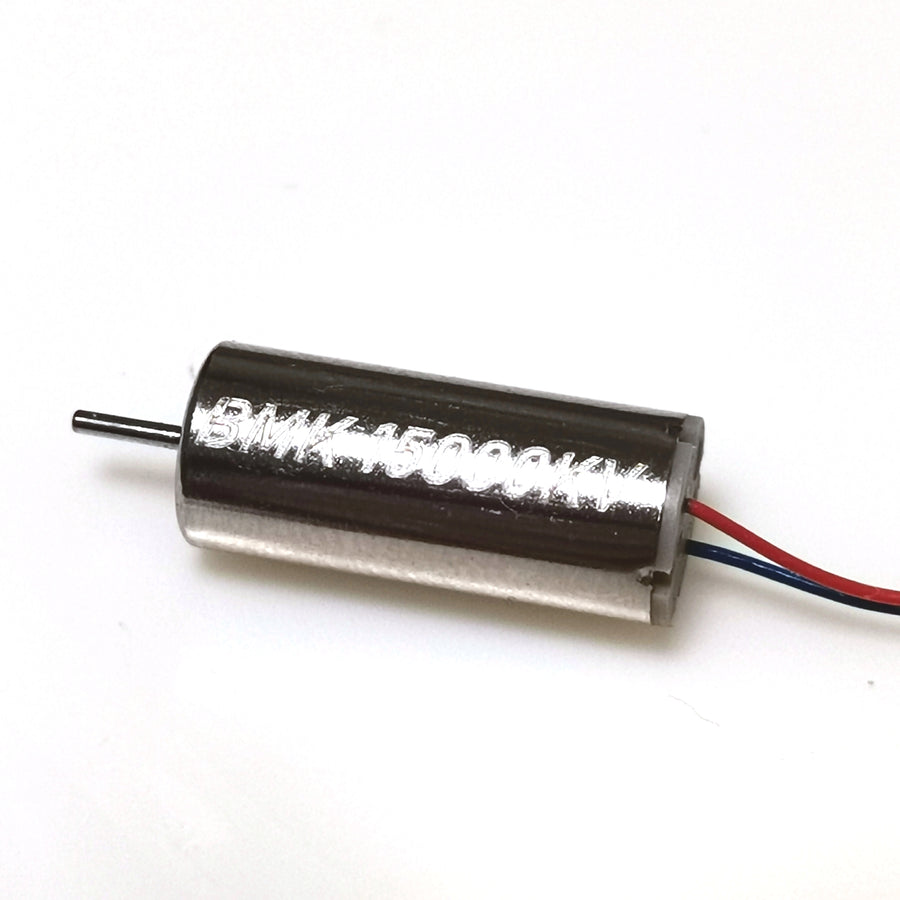

High-performance coreless motor optimised for E20 free-flight models. Designed for lightweight, efficient power with plug-and-play JST compatibility.
Fully compatible with:
▶️ Demo Videos
The motor runs equally well in both directions. You can reverse polarity on the Micro JST connector if needed.
📐 Description
- Motor Diameter: 8.5mm
- Motor Length: 20mm
- Shaft Diameter: 1.0mm
- Cable Length: 80mm
- Weight: 5.1g
- Connector: Micro JST 1.25mm
⚙️ Specifications
Rated Voltage | 3.7V DC |
Operating Voltage Range | 2.0 – 4.5V DC |
Operating Temperature | -10°C to 50°C |
🔌 Electrical Characteristics
No Load Speed | 55,000 rpm @ 3.7V |
No Load Current | Max 300mA |
Stall Current | 10A (max 2 seconds) |
Terminal Resistance | 0.4Ω ±5% |
📦 Package Includes:
- 1 × Coreless Motor
