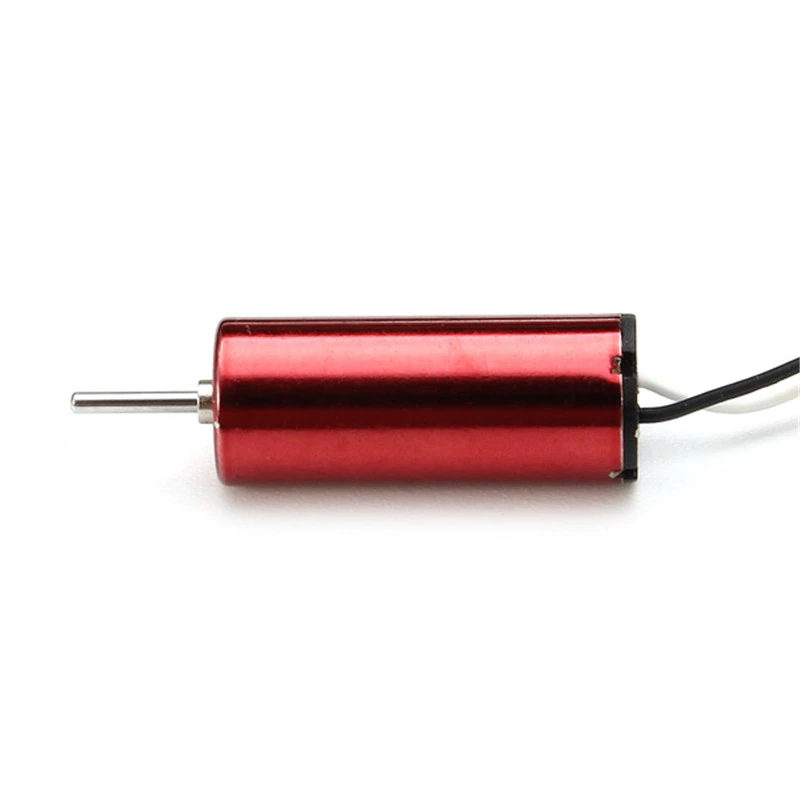

High-performance coreless motor designed for miniature or ultralight free flight (FF) models.
⚠️ Note: This motor is too small for E20 models. For those builds, please see our 8.5mm motors.
Fully compatible with the following BMKS components:
This motor operates equally well in both directions. If necessary, you can reverse the Micro JST socket polarity to suit your setup.
▶️ Demo Video
📐 Description
- Motor Diameter: 6mm
- Motor Length: 15mm
- Shaft Diameter: 0.8mm
- Cable Length: 70mm
- Weight: ~2g
- Connector: 1.25mm JST Plug
⚙️ Specifications
| Rated Voltage | 3.7V DC |
| Operating Voltage Range | 2.0 – 4.5V DC |
| Operating Temperature Range | -10°C to 50°C |
🔌 Electrical Characteristics
| No Load Speed | 59,000 rpm @ 3.7V |
| No Load Current | Max 180mA |
| Stall Current | 3A (max 2 seconds) |
| Terminal Resistance | 1.2Ω ±5% |
📦 Package Contents
- 1 × Motor
