⚠️ IMPORTANT:

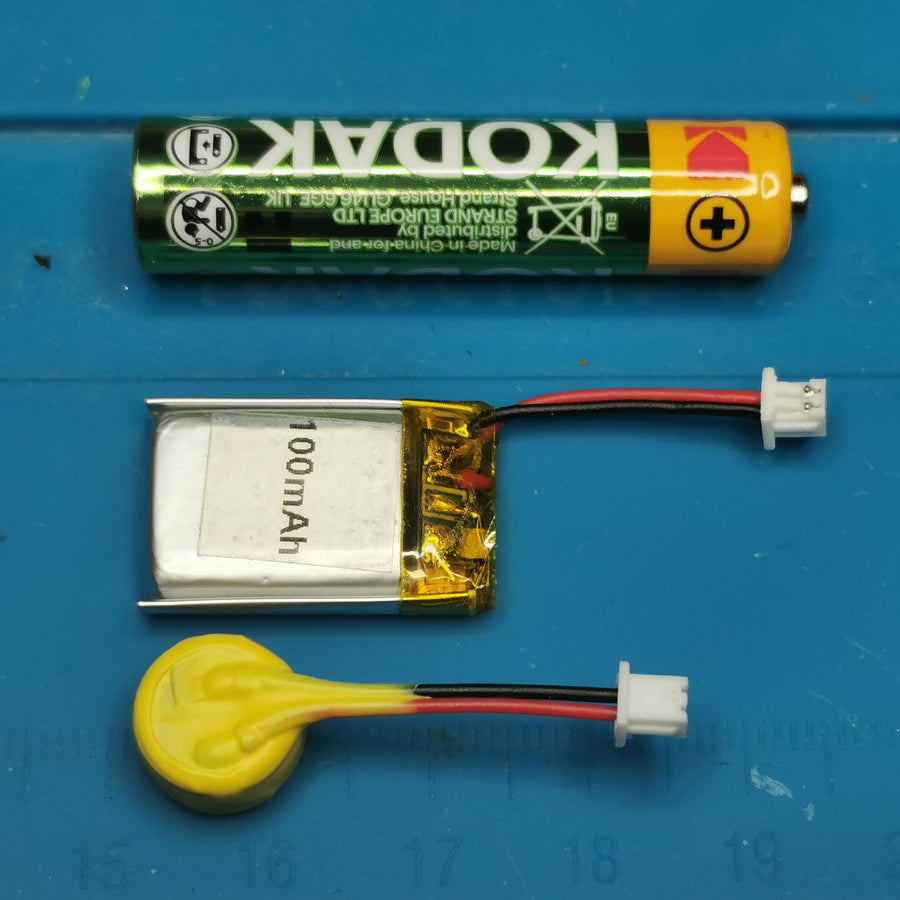

100mAh batteries include onboard current (~800mA) and discharge protection (cut-off at <3.0V). The maximum charge current is 800mA, and the maximum discharge current is 100mA.
40mAh batteries do not include protection. While your beacon may function down to 1.8V, doing so can damage the battery and reduce its lifespan. The maximum charge current is 40mA, and the maximum discharge current is 25mA.
Suitable for:
- Micro servos, pager motors, or solenoids
- Locator beacons
⚠️ Not suitable for high-current BandBurners or flight motors.
🔌 100mAh Compatible Charger:
Specifications:
- Connector: Micro JST 1.25mm
- Type: LiPo Battery
- Maximum Current: 0.8A
- Voltage: 3.7V
- Weight: 2.2g
- Size: 17mm x 14mm x 4.0mm (±1mm variation possible)
