IMPORTANT NOTE: This product has been discontinued.

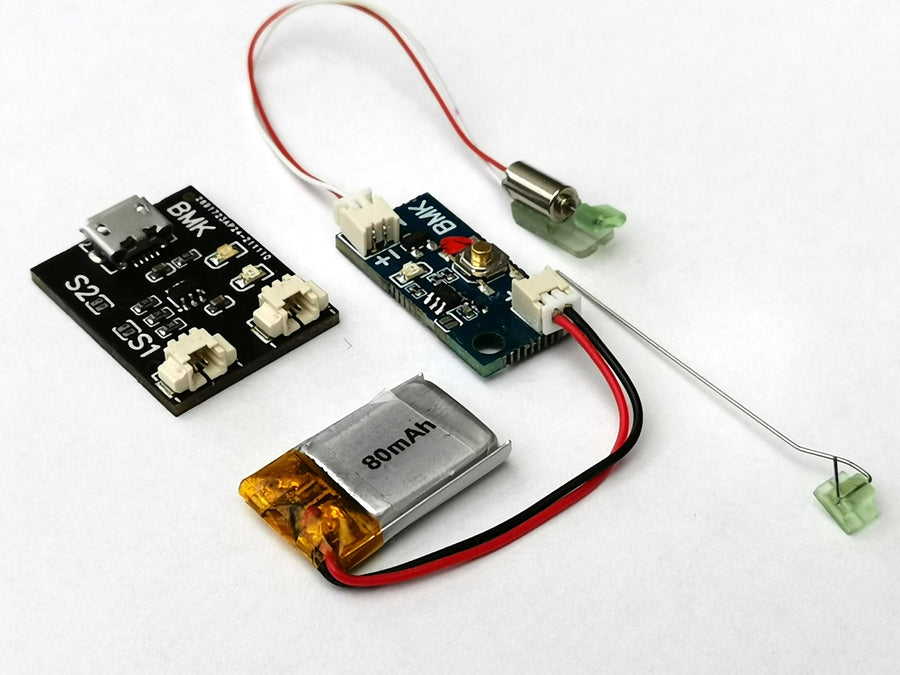

Micro JST 1.25mm DT Release System
A complete DT (dethermaliser) release system designed for free flight models. The total system weight is only 4.0g, including the battery.
The low-current pager release requires just 200mA to activate the force multiplier (commonly referred to as a "mousetrap"). It has been tested under loads ranging from 100g to 400g without issue.
The 80mAh battery provides sufficient power for at least 10 days of use (not just hours), and up to ~30 days when idle.
The timer is configurable within a range of 10 to 2500 seconds. You can leave the battery connected throughout the flight day—or longer—without concern.
⚠️ Please note: The original version of this timer used 1-second increments. As of summer 2023, this has been updated to 10-second intervals.
📄 Download Manual
Includes specifications, wiring diagrams, and timer setup instructions.
📋 Timer Features
- Weight: 1.2g
- Dimensions: 23mm × 11mm × 5mm
- Maximum Timer Duration: 2500 seconds (~41 minutes)
- Timer Steps: 10-second intervals
- Timer Tolerance: ±1% typical
- Timer Activation: Hold the onboard button for at least 2 seconds. The timer starts upon release.
- Timer Cancel: Click the onboard button
- Operating Voltage: 3.0–5.0V (compatible with 1S LiPo batteries)
- Power Consumption: 0.06mA idle / 0.6mA countdown / 1000mA during burn (2 seconds)
- Maximum Output Current: 5A continuous
- Low Battery Warning: <3.7V (double flashes in idle mode)
